Blanchard Grinding for Large Parts and Plates

Blanchard grinding is an efficient precision grinding process for larger parts, plates, and components that need substantial material removal while maintaining a flat, consistent surface. BK Grinding uses this process when customers need oversized, uneven, or warped material brought closer to a required thickness, flatness, and parallelism specification.

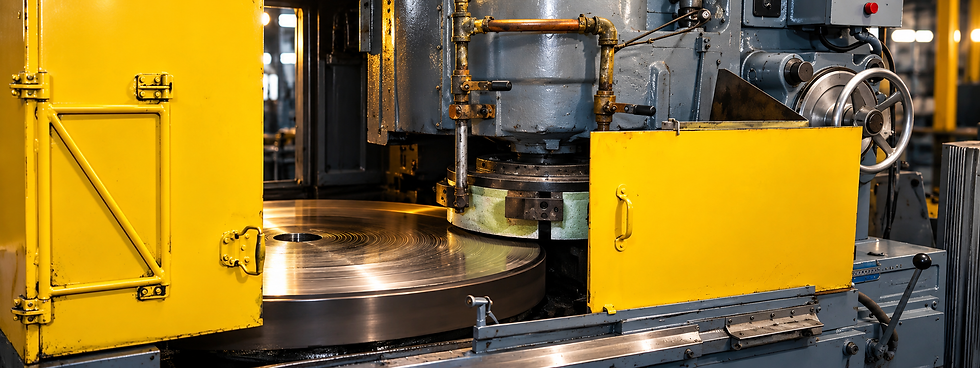

The process uses a large rotating magnetic chuck to hold the workpiece while a vertical-spindle grinding wheel removes material across a broad surface area. This makes Blanchard grinding particularly effective for steel plates and other substantial industrial components where productivity and dimensional control must work together. Its recognizable cross-hatched surface pattern is a result of the rotary grinding action.

Controlled Thickness, Flatness, and Parallelism

A successful Blanchard grinding project is about more than removing material. The objective is to control the finished geometry of the part. BK Grinding can grind opposing sides of a component to work toward a specified final thickness while improving flatness and maintaining parallelism between surfaces.

Flatness describes how uniformly a surface conforms to the required plane. Parallelism addresses how consistently two opposing surfaces remain aligned relative to one another. These characteristics can be essential for components that must assemble accurately, sit correctly in a fixture, seal against another surface, or proceed to subsequent machining operations.

Grinding Oversized, Uneven, and Warped Material

Incoming stock is not always ready for production. Plates can arrive thicker than required, uneven across the surface, or distorted from previous manufacturing processes. Blanchard grinding provides an efficient way to remove excess stock and establish more controlled surfaces before the component moves forward.

BK Grinding evaluates each job according to the material, incoming condition, geometry, required stock removal, and final specifications. Grinding parameters are adjusted to suit the application rather than treating every part the same.

Materials and Industrial Applications

Blanchard grinding is commonly associated with steel and tool steel, but BK Grinding's broader material capabilities include stainless steel, aluminum, titanium, Inconel and specialty alloys, along with certain engineered materials when appropriate for the application. The grinding method, wheel selection, feed, speed, coolant, workholding, and material-removal strategy can be adapted according to the material and required result.

This capability is useful for industrial plates, machine components, tooling, fixtures, dies, fabrication components, and other parts where accurate material removal and broad flat surfaces are required.

Why Choose BK Grinding for Blanchard Grinding?

BK Grinding approaches every project around the customer's drawing and application. The goal is to deliver the required thickness, flatness, parallelism, and surface condition while using an efficient grinding strategy appropriate for the part.

If your project involves a large plate, oversized stock, an uneven component, or a part that needs controlled material removal before its next manufacturing step, BK Grinding can review the specifications and determine whether Blanchard grinding is the right process. Send the team your drawing, material information, dimensions, and required tolerances to start the conversation.
